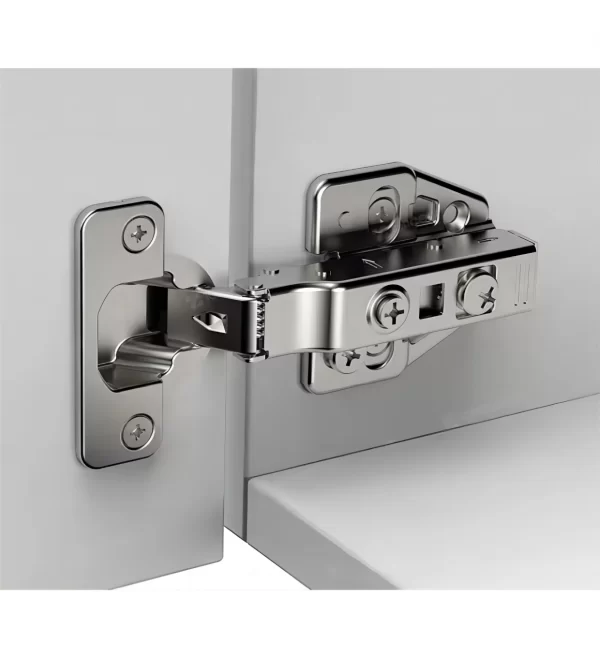

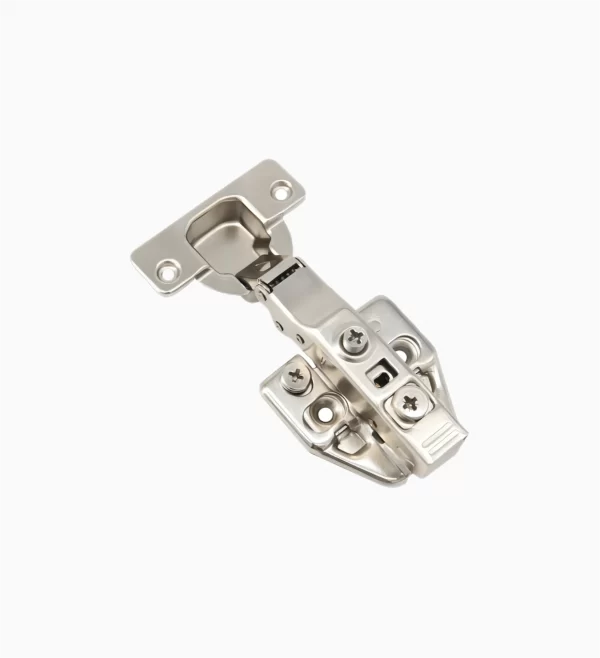

35mm Soft Closing Concealed Cabinet Hinges with 3D Clip-on Base – AH.3209
35mm one-way Soft Closing Hinge with 3D adjustable clip-on base Full Overlay Slow closing concealed hinge
Material: cold-rolled steel
Finish: Nickel Plated
Base: clip-on type
Cup Diameter: 35mm, Deepth:11.3mm
Opening Angle: 105°
Screw Hole Distance: 48mm
Available cabinet door thickness: 14-22mm
Accessories optional: screws, cup cover, arm cover
Half-overlay and Insert style optional
Item No.: AH.3209
【Material】 The hinge is made of cold rolled steel with high hardness, is anti-rust resistant, and does not deform easily which has a long lifetime
【Function】 The hinge has a built-in hydraulic metal spring to ensure the cabinet closes slowly and has no noise.
【Installation】 With a Clip-on base and 3 adjustable screws, the hinge is easier to be installed and ensures your cabinet panel is properly aligned and opens smoothly and closes slowly.
【Application】The hinge is widely used in various cabinets, wardrobes, and bookcases for homes, kitchens, and offices.
